eudae 29 HD wheelset
All Mountain | Enduro
1765g | 31mm internal width
Lifetime Warranty & Incident Protection
eudaemonia noun
eu·dae·mo·nia | \ ˌyüdēˈmōnēə \
Definition: Human flourishing - achieved through living virtuously
We optimized our eudae HD 29 wheel system to provide a light and precise feel, while maintaining a robust build and optimally wide rim profile to fully support higher volume tires through hard cornering and technical trail features. Our eudae HD wheelset is ready to handle demanding terrain, whether it’s at the bike park or in the backcountry, so you can focus your entirety on the ride before you and wherever it takes you.
Rims
31ID | 37W | 24.5D | 3.5 asymmetry
Blended T700 & T800 carbon fiber | raw | 480g
Hubs
arché|os boost | F:15x110 | R:12x148
28H | centerlock disc | 36T ratchet
Build
Spokes: Pillar Wing 23 | straight-pull | 1:1 | 3-cross | 300mm universal spare spoke
Nipples: Pillar brass exposed PB14|FG2.3|14mm
Tape: 32mm tubeless single layer
Valvestems: 40mm tubeless anodized alloy
Weight: 1765g +/-1.5%. Tape & valves add ~30g
Setup
Tires Compatibility: 2.2 - 2.6”
Max Pressure: 45psi max
Max Weight: 130kg
Included Extras
Universal spare spoke
Centerlock Lock Rings
We’re on this ride together.
Put simply, you’re supporting us with your purchase, and we’ll be here to support you in your ride experience. If one of our products fails due to a manufacturing defect, we’re going to take care of you by repairing or replacing it. And for everything else, we’re still going to take care of you via at-cost crash replacements and service guidance.
Incident Protection
Even the most thoughtfully-engineered products have their limits, and in the unlikely event that you exceed ours, we’ll want to get you back in the saddle as quickly and painlessly as possible. That’s why, rather than heavily marking up our products and offering “discounted” crash replacements from which we still profit, we offer at-cost replacements on non-wear items. Simply contact us at support@logoscomponents.com with photos and a description along with any serial numbers (under the rim tape in the case of a rim) and we’ll get you sorted out.
Our Optimized Rim Profile
With its generous 31mm internal width, our eudae 29 HD rim supports 2.2" - 2.6” tires at lower pressures without tire squirm for greater traction, control, and comfort. Sharing the same rim profile as our eudae 29 trail wheelset, eudae HD features a modified heavy duty carbon layup, as well as heavier gauge Pillar Wing 23 bladed spokes, making it our toughest wheelset yet.
3.5mm of asymmetry balances spoke angles for higher overall tension and a stronger, more durable wheel with a standard spoke count, while bead locks keep tires secure under constantly changing loads to prevent burping and blowoffs.
Its robust blended-modulus layup is formed via a high-precision molding process to achieves a clean raw carbon finish free of excess resin, fillers, or post-mold coatings for exceptional strength-to-weight, and heavier or more aggressive riders can add tire inserts for even more ruggedness from a lighter overall system.
Hubs Worth Investing In

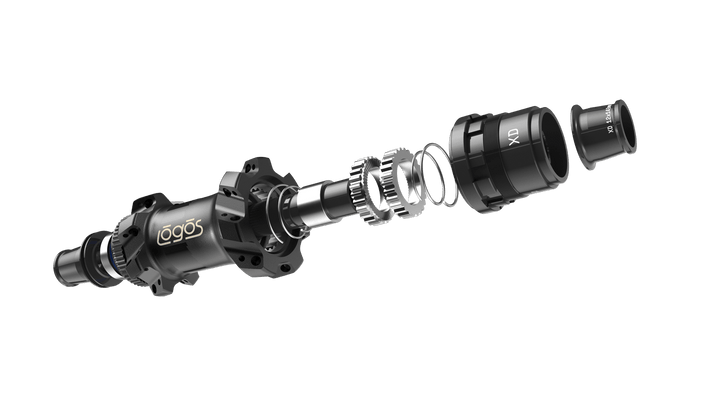

At the heart of every Lōgōs wheel is the arché|os hubset. Based on the star ratchet design patented by Hügi in the 90s and later popularized by DT Swiss, our hubs' “arche|os” architecture employs the proven dual-spring floating variation that established this as the “archetype” for bombproof reliability.
A Build We Stand Behind
All of our wheels are laced with Pillar Wing spokes as much for their exceptional strength, durability, and serviceability as for their light weight and slight aerodynamic benefit.
Exposed brass nipples always so that a few years down the road when it's time for a truing service is a breeze.
Every lōgōs wheel is precision prepped, machine-built, hand-finished, and machine-checked to ensure the tightest tolerances for years of trouble-free riding.
PROVEN OPEN STANDARDS & NON-PROPRIETARY COMPONENTS
Explore Our Product Choices
ENGINEERING & MANUFACTURING
See Our Process
