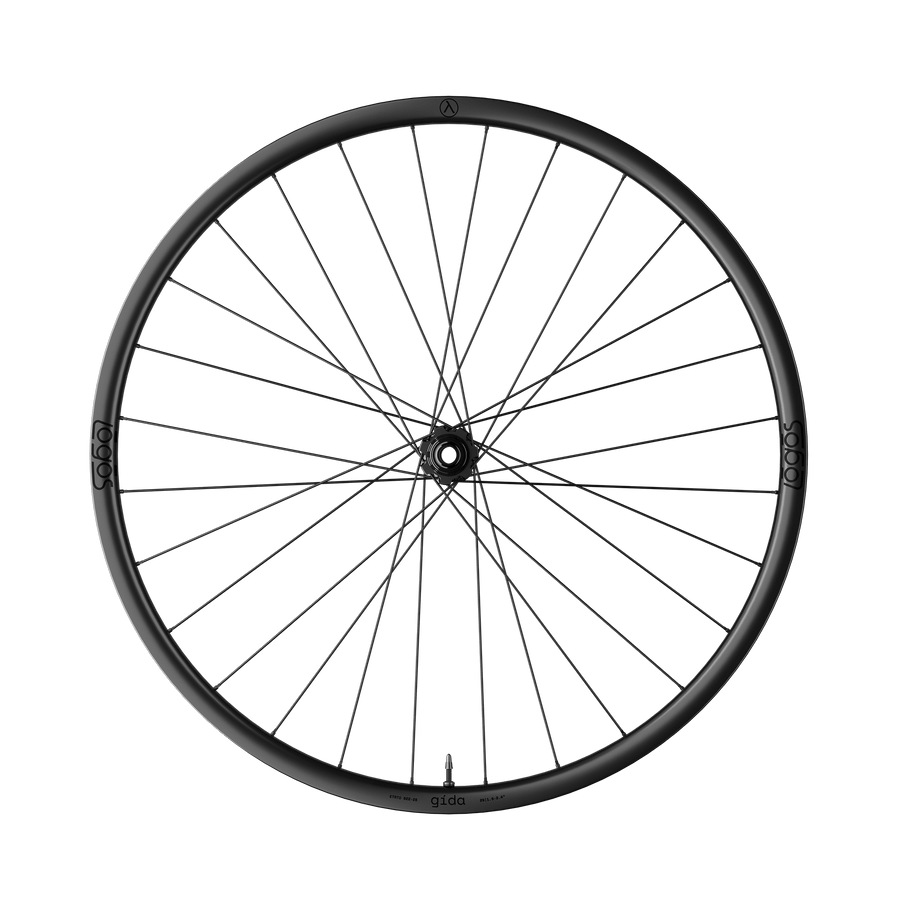

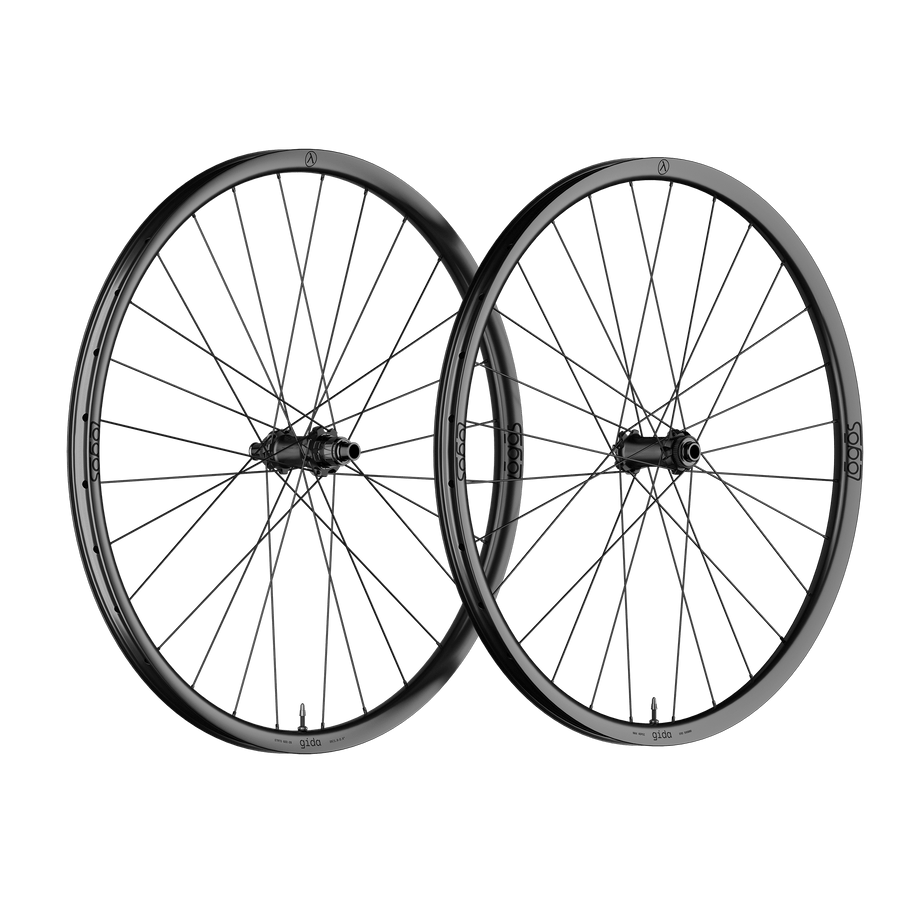

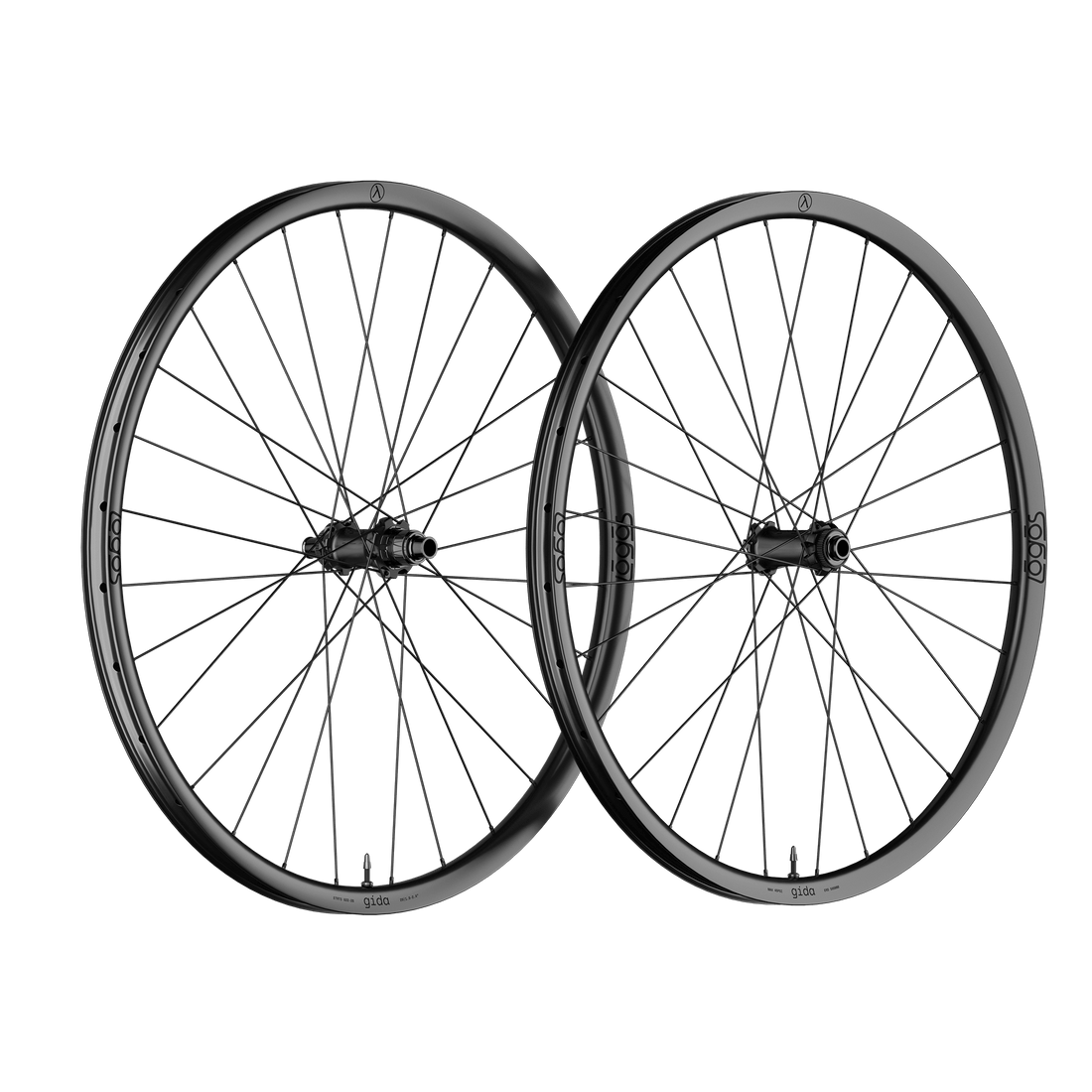

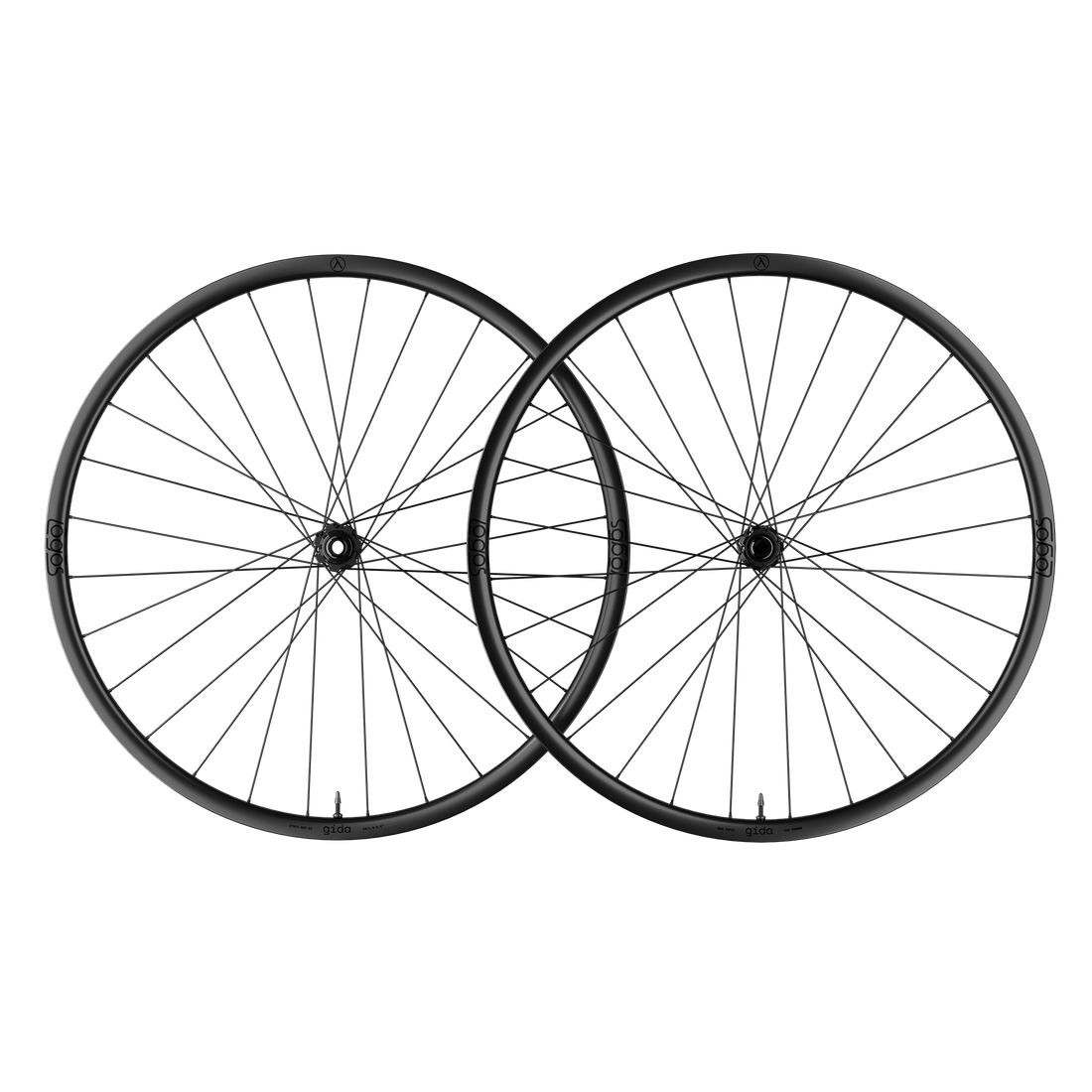

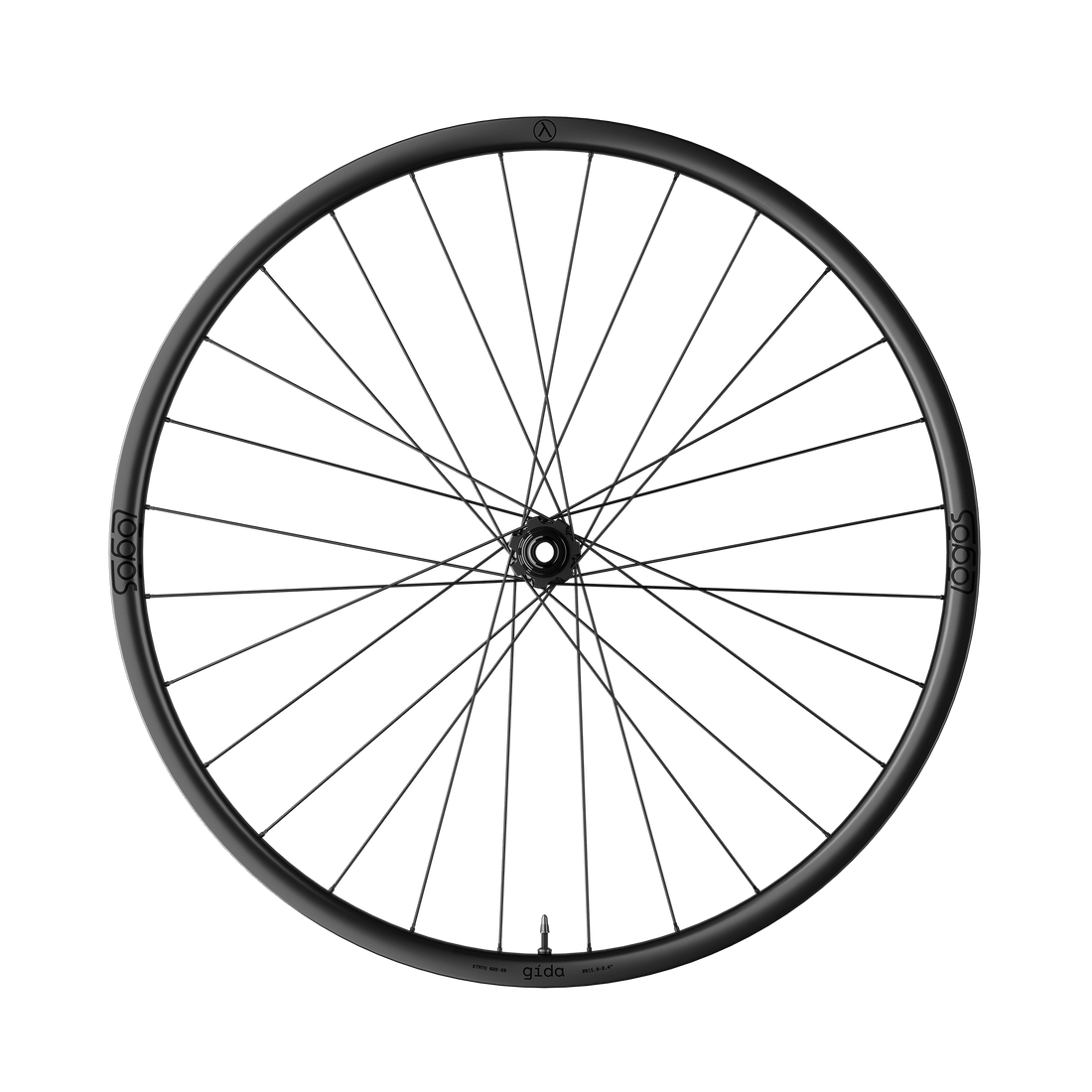

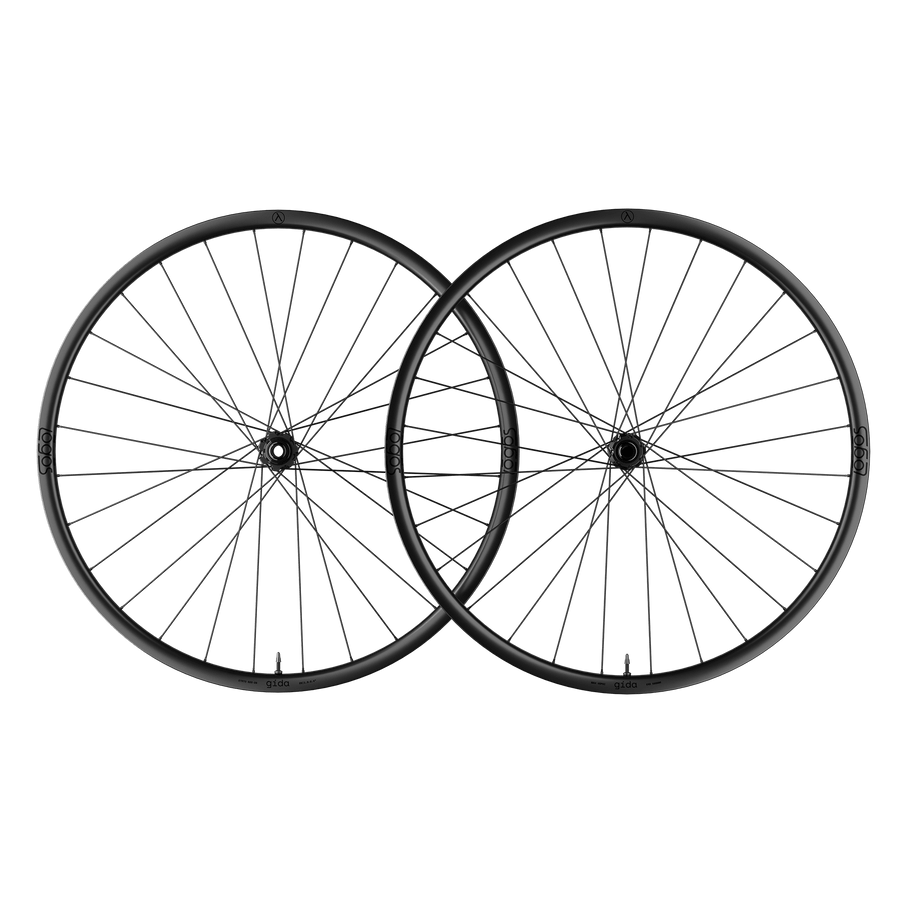

gída 29 wheelset
XC
1395g | 28mm internal width
Lifetime Warranty & Incident Protection
Please allow approx. one week for XD15 bearing upgrades
gída noun
gi·da | \ ˌˈgid, ə \
Definition: Goat (i.e. climbs like a; "The Greatest of All Time”)
Today’s more technical XC courses demand more capable race bikes than ever, with wheels that handle meatier rubber for gnarlier terrain while maintaining raceday weights. Our gída 29 wheel system is not just designed to make your XC bike climb like a goat, but also help you compete like the GOAT. Purpose built for the podium, gída is a race-bred wheel fit for the greatest, designed to be light and strong enough for competition, yet reliable and serviceable enough for training.
Rims
28ID | 33W | 24.5D | 3mm asymmetry
Blended T700 & T800 carbon fiber | raw | 355g
Hubs
arché|os boost | F:15x110 | R:12x148
28H | centerlock disc | 36T ratchet
Build
Spokes: Pillar Wing 20 | straight-pull | 1:1 | 3-cross | 300mm universal spare spoke
Nipples: Pillar brass exposed PB14|FG2.3|14mm
Tape: 30mm tubeless single layer
Valvestems: 40mm tubeless anodized alloy
Weight: 1395g +/-1.5%. Tape & valves add ~30g
Setup
Tires Compatibility: 1.9 - 2.4”
Max Pressure: 45psi max
Max Weight: 130kg
Included Extras
Universal spare spoke
Centerlock Lock Rings
While we build our products to last, even the most thoughtfully-engineered products have their limits. In the unlikely event that you exceed ours, we’ll want to get you back in the saddle as quickly and painlessly as possible.
That’s why every Lōgōs product comes with:
Lifetime Warranty against material or manufacturing defects;
2-Year No-Fault Crash Replacement covering 100% of the cost of components (e.g. rims; hubs) damaged while riding the product as intended (no XC wheels on DH bikes);
50% off replacement parts after two years and for non-original owners.
Our Optimized Rim Profile
With its 28mm internal width optimized for today’s more technical XC racing, our gída 29 rim supports 1.9" - 2.4” tires at lower pressures without tire squirm for greater traction, control, and comfort.
3mm of asymmetry balances spoke angles for higher overall tension and a stronger, more durable wheel with a standard spoke count, while bead locks keep tires secure under constantly changing loads to prevent burping and blowoffs.
Its robust blended-modulus layup is formed via a high-precision molding process to achieves a clean raw carbon finish free of excess resin, fillers, or post-mold coatings for exceptional strength-to-weight, and heavier or more aggressive riders can add tire inserts for even more ruggedness from a lighter overall system.
Hubs Worth Investing In

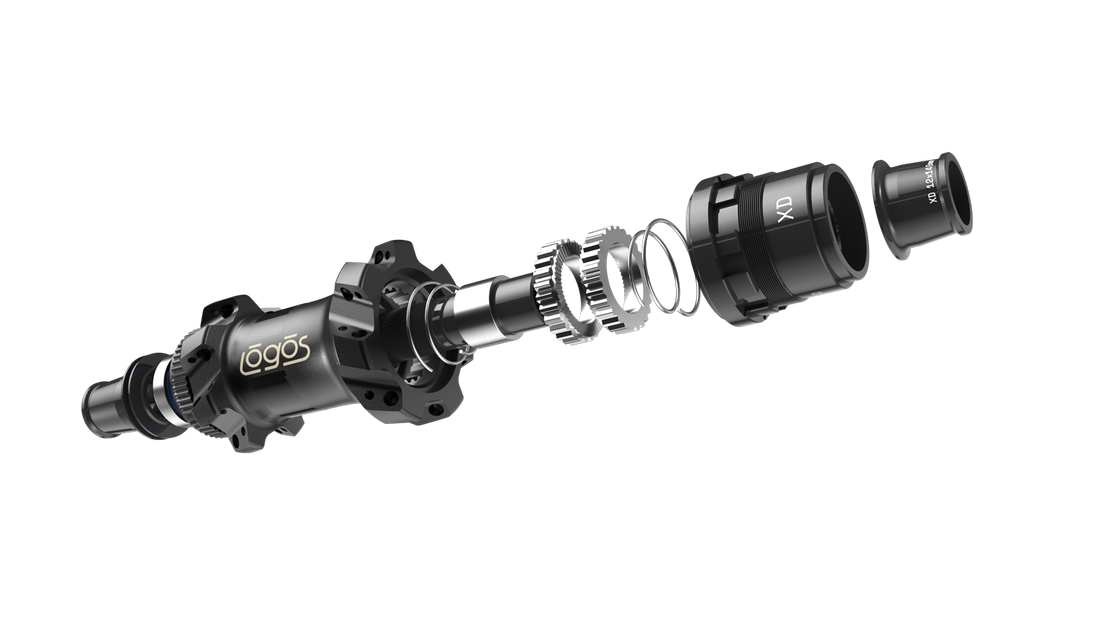

At the heart of every Lōgōs wheel is the arché|os hubset. Based on the star ratchet design patented by Hügi in the 90s and later popularized by DT Swiss, our hubs' “arche|os” architecture employs the proven dual-spring floating variation that established this as the “archetype” for bombproof reliability.
A Build We Stand Behind
All of our wheels are laced with Pillar Wing spokes as much for their exceptional strength, durability, and serviceability as for their light weight and slight aerodynamic benefit.
Exposed brass nipples always so that a few years down the road when it's time for a truing service is a breeze.
Every lōgōs wheel is precision prepped, machine-built, hand-finished, and machine-checked to ensure the tightest tolerances for years of trouble-free riding.
